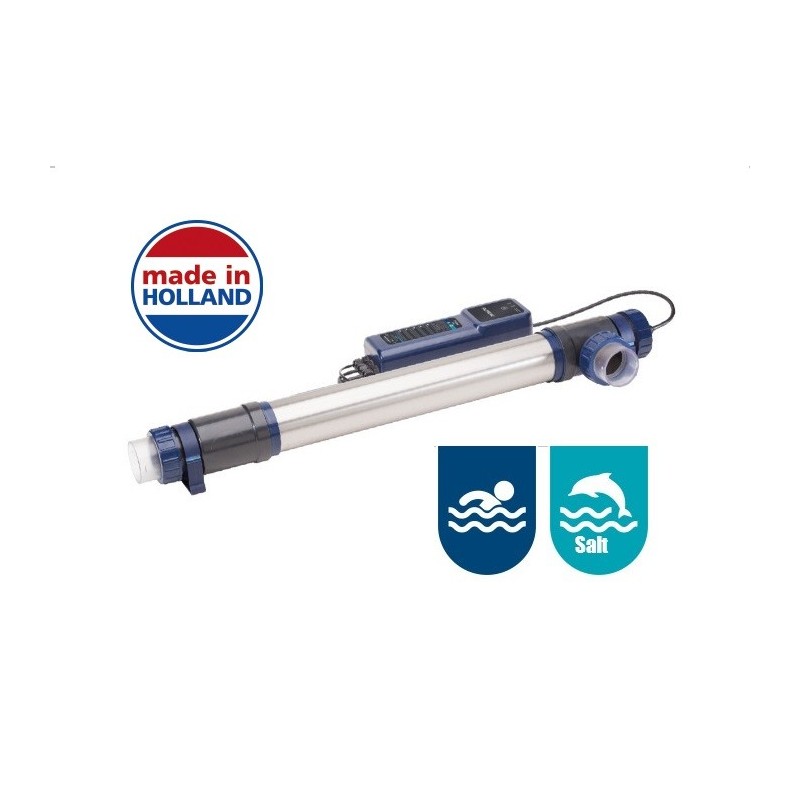

In the Filtreau UV-C Titan are a UV-C radiation with a wavelength of 253.7 nm generated by a new innovated High output powerful germicide Ultra-Violet lamp with an expected lifespan of 12000 hours what will ensure an efficient disinfection on algae and bacteria (including Legionella bacteria).
Working :
The water are led through the Filtreau UV-C Titan purifier by a pump where the UV-C radiation neutralizes bacteria, viruses and other primitive organisms and stops them from multiplying. This Filtreau UVC Titan system ensure you that your water will be safe, fresh and clean in an efficient way.
Improvements to earlier systems :
The robust 2mm thick tubes of the Filtreau UVC purifier are bigger in sice than most common UV systems on the market and can handle a pressure of 3 bar and have a diameter of 90mm what have the benefits that the water flow speed are reduced with 25% inside the tube what give the special high output UV lamp more ultraviolet radiation time on the passing water then other systems with the same wattage lamp.
Marine and salt water pools :
The Filtreau UVC Titan are especially developed for large koi pond , freshwater , seawater or saltwater swimming pools ( salt electrolyse ) and can reduce the use of chlorine and other chemicals in swimming pools up to 80% The Filtreau UVC Titan systems are made with an Inox Duplex ( Titan ) stainless steel Duplex metal UV reactor.
Extra UV reflection :
The Filtreau UVC Titan systems have an Inox Duplex Stainless Steel UV reactor housing with a pollished interior. The pollished inside ensures the reflection of the UV-C radiation and increasing the efficiency up to 35%.
Led Lamp :
Special of this in Holland produce innovated Filtreau UVC Titan system are that this are saltwater resistand and have 3 colored LED lamps witch will show you on time when you need to order a new replacement lamp and when you need to replace the old lamp so you will have always the best and optimal preformens of this water disinfection system.
Application :
Because of the size of almost one meter long are the Filtreau UVC Titan the perfect water purifier for large volume waterflow what are used with koifish ponds , private sweet and salt water pool owners and professionals in the industry with high demands for disinfection of water and / or control of algae in spa and swimming pools.
Easy instalation :
The unit comes for a minimum pressure loss with a 63 mm inlet / outlet connection and because of the bottom outlet are this Filteau UVC Titan unit easy to install and will be fully supplied with a manual , electronic ballast , longlife high-frequency UV-C lamp and mounting brackets.
E.U. Regulatuions :
All Filtreau UVC system meet the new EU regulation and have a safety switch witch make sure the lamp only burn when the lamp are safe in the housing what guarantees optimal safety for the user against UV radiation contact to eye,s and skin during maintenance or change lamps
See for more information the user manual on the website
Advantages of UV-C treatment:
- Ensures fresh, clean and clear water
- Visibly clearer water, reduced odours, minimised red eye, stinging eyes and skin irritation
- Disinfects water efficiently and safely
- UV light disinfection leave no additives, no smell and no active pathogens in swimming pools
- Can reduce the use of chlorine and other chemicals up to 80%
- Keeps the formation of mould, bacteria and algae under control
- Prevents structural damage caused by chlorine by-products.
- More environmentally-friendly than traditional clear water treatment methods
- UV disinfection destroys combined chlorines (chloramines) in swimming pools
Advantages of the Filtreau UVC Titan :
- Broad diameter 90 mm housing for optimal UV-C exposure
- Up to 35% more UV-C yield as a result of reflection
- Robust 2mm thick Duplex stainless Steel housing
- Saltwater resistant
- Made in Holland
- Expected lifespan UV lamp 12000 hours
- Build for heavy industry and marine or saltwater pools
- can reduce the use of Chloride in swimming pools up to 80%
- Simple installation and maintenance
- Has a lamp safety switch to prevent UV eye / skin contact.
- 360° flexibility connection possibilities for easy installation and maintenance
- Longer UV exposure time for better disinfection
- Special High output germicide UV-C lamp
- 2-year guarantee with respect to manufacturing faults
- Earthed
Technical specifications | Filtreau UVC Titan 40 Watt | Filtreau UVC Titan 80 Watt | Filtreau UVC Titan 120 Watt Amalgaam |
Max water content | 40.000 L | 75.000 L | 120.000 L |
High output Lamp | 40 Watt | 80 Watt | 120 Watt Amalgaam |
UV Radiation output | 19 Watt | 29 Watt | 42 Watt |
Optimal flow | 15000 L/H | 20000 L/H | 25000 L/H |
Max. pressure | 3 bar | 3 bar | 3 bar |
Max. Connection size | Ø63 mm | Ø63 mm | Ø63 mm |
Length of the device | 100 cm | 100 cm | 100 cm |
